Eightech Tectron is for Vacuum, N2 and Air Reflow Equipment

Characteristics

□ Precise and high quality heat up performance
□ Ultra low power consumption (40% reduced comparing with our previous model)
□ Large-capacity, High efficient flux collection
□ Heat-insulation designed for consideration of working environment

Main-Characteristics

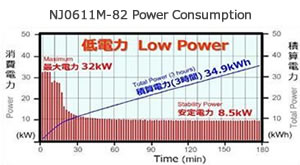

□ Eco-friendly ultra low power consumption

• The light weighting and high insulation of the furnace body can lower the power substantially. The latest NJ0611 series can save huge energy consumption and lower the cost of electricity.


□ Heat-insulation designed for consideration of working environment

• With Low power consumption, the high efficient heat insulation achieved low temperature of cover surface that would not affect to air-condition in production area.


□ Large-capacity flux collection unit to increase operation hours

• The large-capacity flux collection unit makes less cleaning frequency. Also it is easy to handle replacing and cleaning radiators.

Specifications

Model No.		NJ0611M-82	NJ0611M-102	NJ0611L-82	NJ0611L-102
Heating Zone		8	10	8	10
Cooling Zone		2
Power		AC200V 3Φ
Start up Power		Max. 32.0kW	Max. 42.5kW	Max. 35.0kW	Max. 44.0kW
Normal Power		Approx. 8.5kW	Approx. 11.5kW	Approx. 9.5kW	Approx. 12.5kW
N2 Consumption		Approx. 15 ～ 18m3/h		Approx. 18m3/h
Dimension	Length	5,134mm	5,704mm	5,431mm	6,322mm
	Width	1,360mm
	Height	1,460mm		1,525mm
PCB Width		50 ～ 400mm		50 ～ 500mm
PCB Length		70 ～ 500mm		70 ～ 600mm
Component Height		Upper：27mm　Lower：27mm (from chain top)
Flux Collection		Standard Equipment : Large-capacity flux collection unit
