Eightech Tectron is for Vacuum, N2 and Air Reflow Equipment

Characteristics

□ Ultra low power consumption (50% reduced comparing with our previous model)
□ Large-capacity, High efficient flux collection
□ Heat-insulation designed for consideration of working environment

Main-Characteristics

□ Eco-friendly ultra low power consumption

• This model consumption is a half of previous model, also less than the air type reflow oven.
  To replace with the NJ08 series works for huge saving energy and cost-down of electricity.


□ Heat-insulation designed for consideration of working environment

• With Low power consumption, the high efficient heat insulation achieved low temperature of cover surface that would not affect to air-condition in production area.

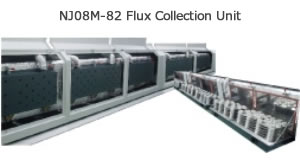

□ Large-capacity flux collection unit to increase operation hours

• The large-capacity flux collection unit makes less cleaning frequency. Also it is easy to handle replacing and cleaning radiators.

Specifications

Model No.		NJ08S-82	NC08M-82	NC08M-102
Heating Zone		8		10
Cooling Zone		2
Power		AC200V 3Φ
Start up Power		Max. 21.0kW	Max. 23.0kW	Max. 27.0kW
Normal Power		Approx. 6.0kW	Approx. 6.5kW	Approx. 7.2kW
N2 Consumption		Approx. 15 ～ 18m3/h
Dimension	Length	4,310mm	5,134mm	5,704mm
	Width	1,290mm	1,360mm
	Height	1,395mm
PCB Width		50 ～ 330mm	50 ～ 400mm
PCB Length		70 ～ 400mm	70 ～ 500mm
Component Height		Upper：27mm　Lower：27mm (from chain top)
Flux Collection		Standard Equipment : Large-capacity flux collection unit
